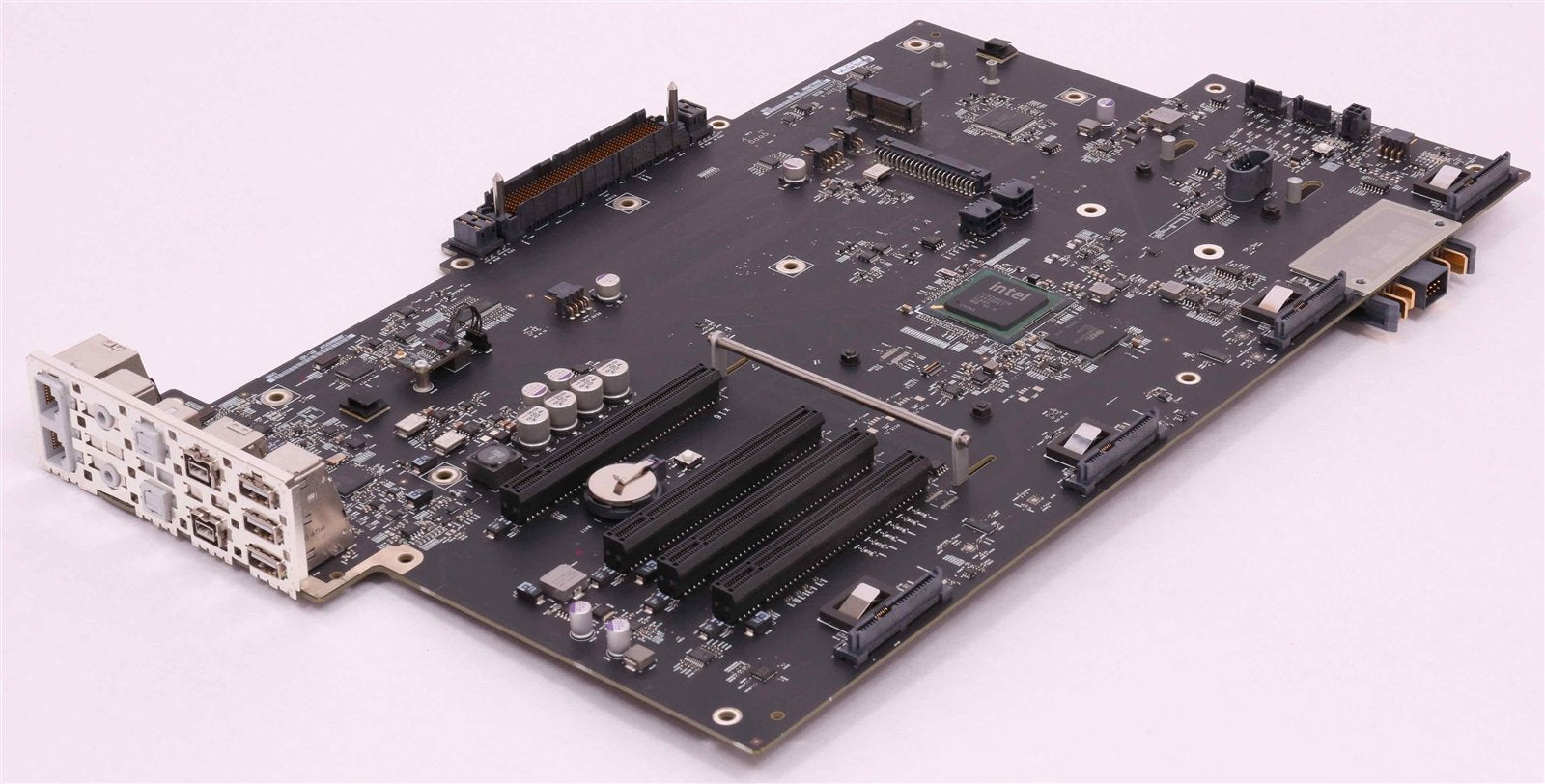

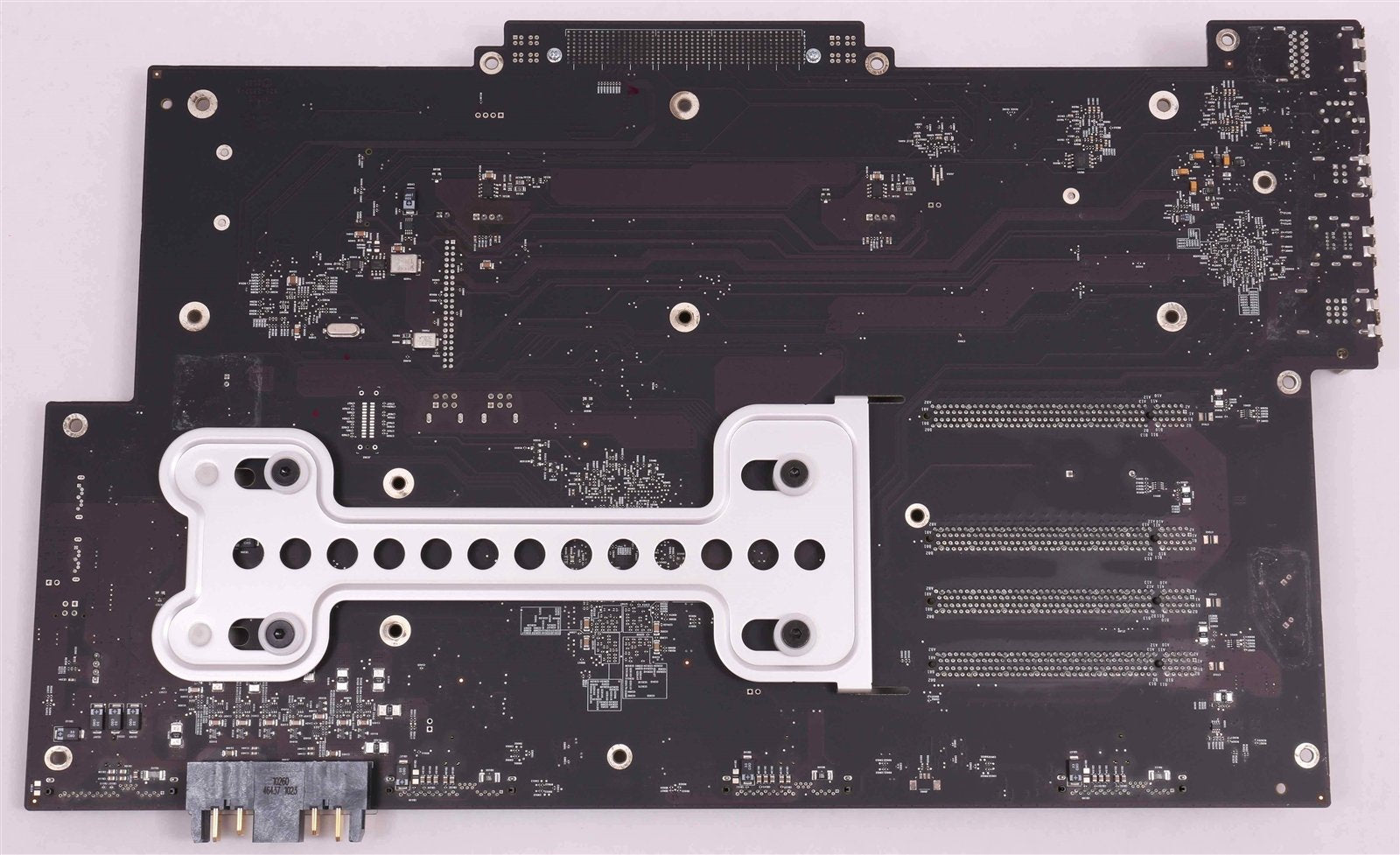

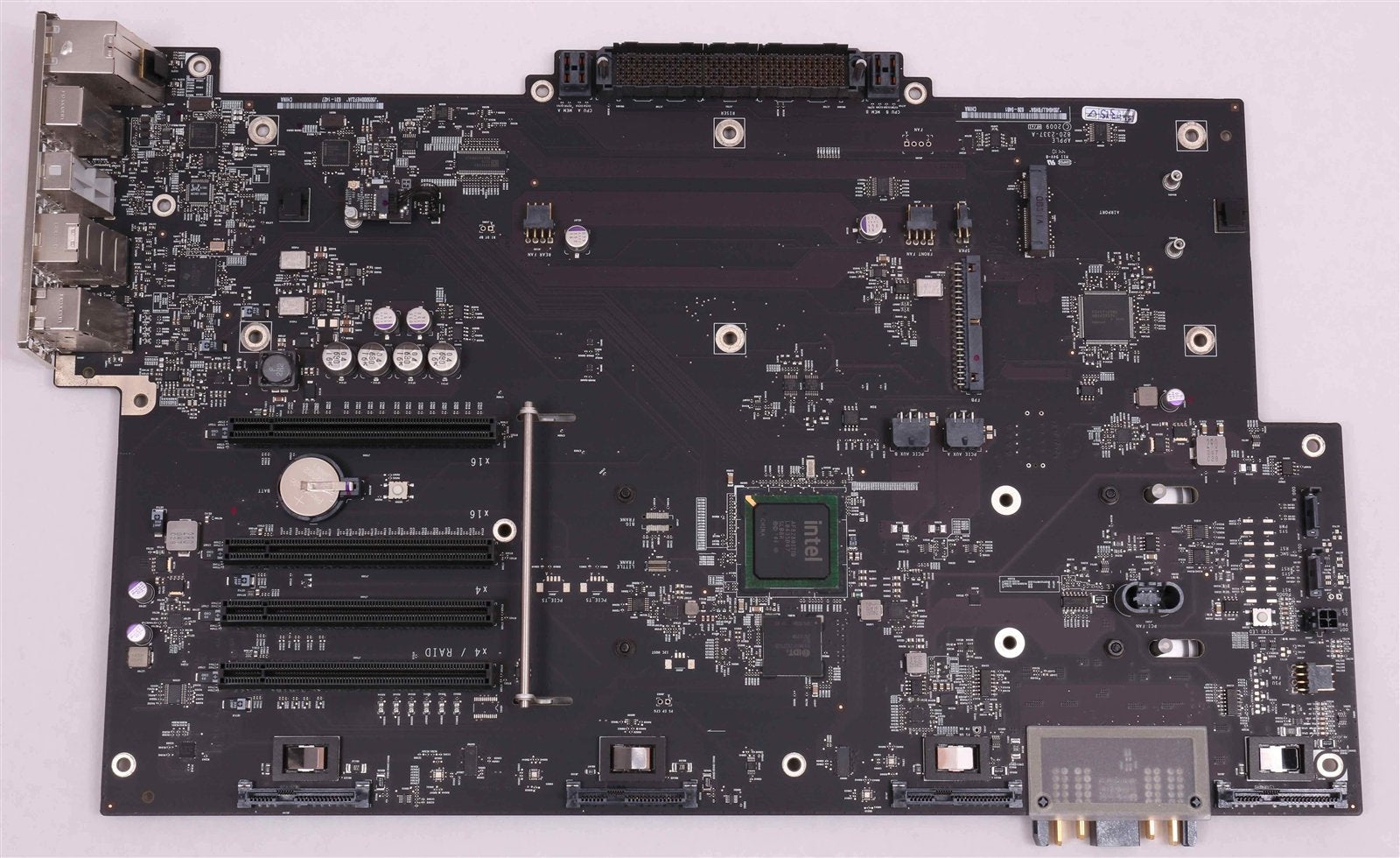

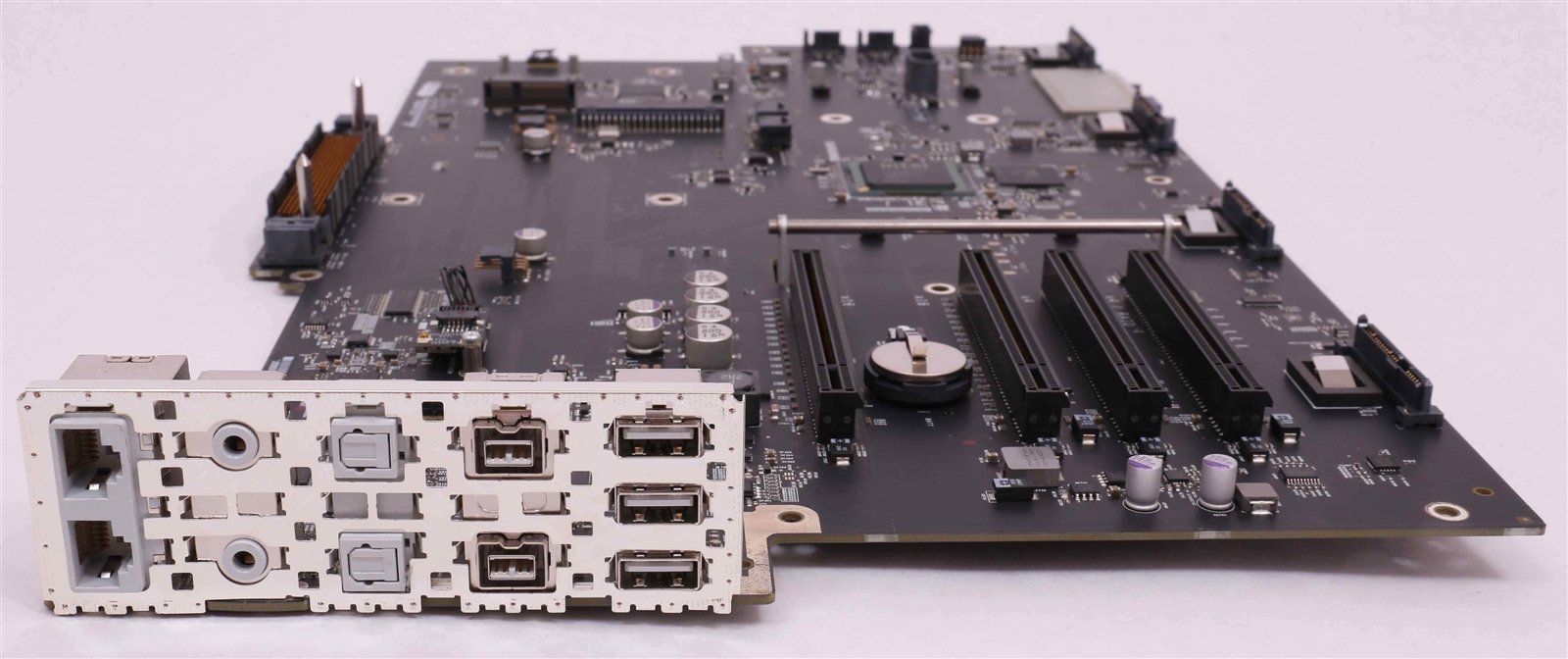

2010-2012 Mac Pro 5,1 Backplane Logic Board 820-2337

Sold Out $ 129.81

Description
Compatibility
Specs
Warranty

Genuine Apple Mac Pro 5,1 Part

Features

Used with either Dual or Single Socket Processor tray.

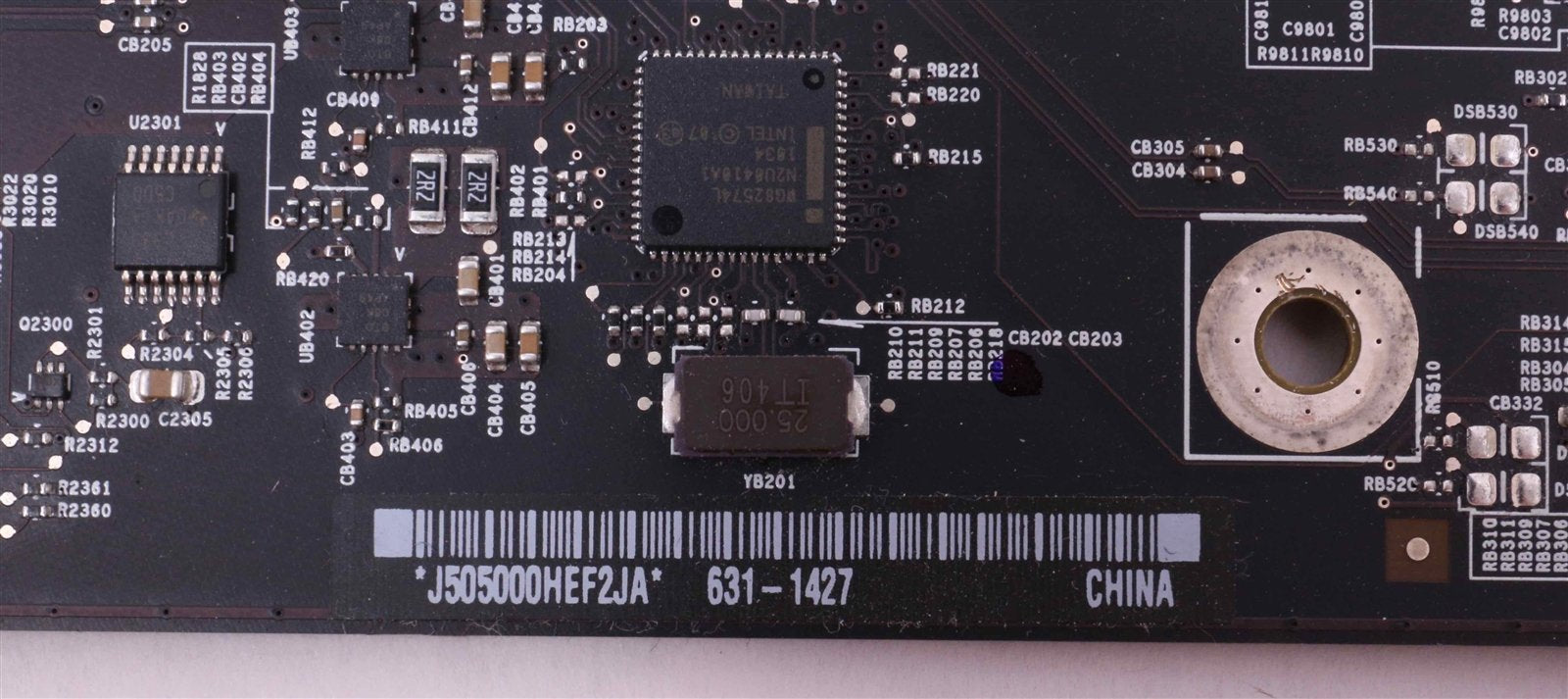

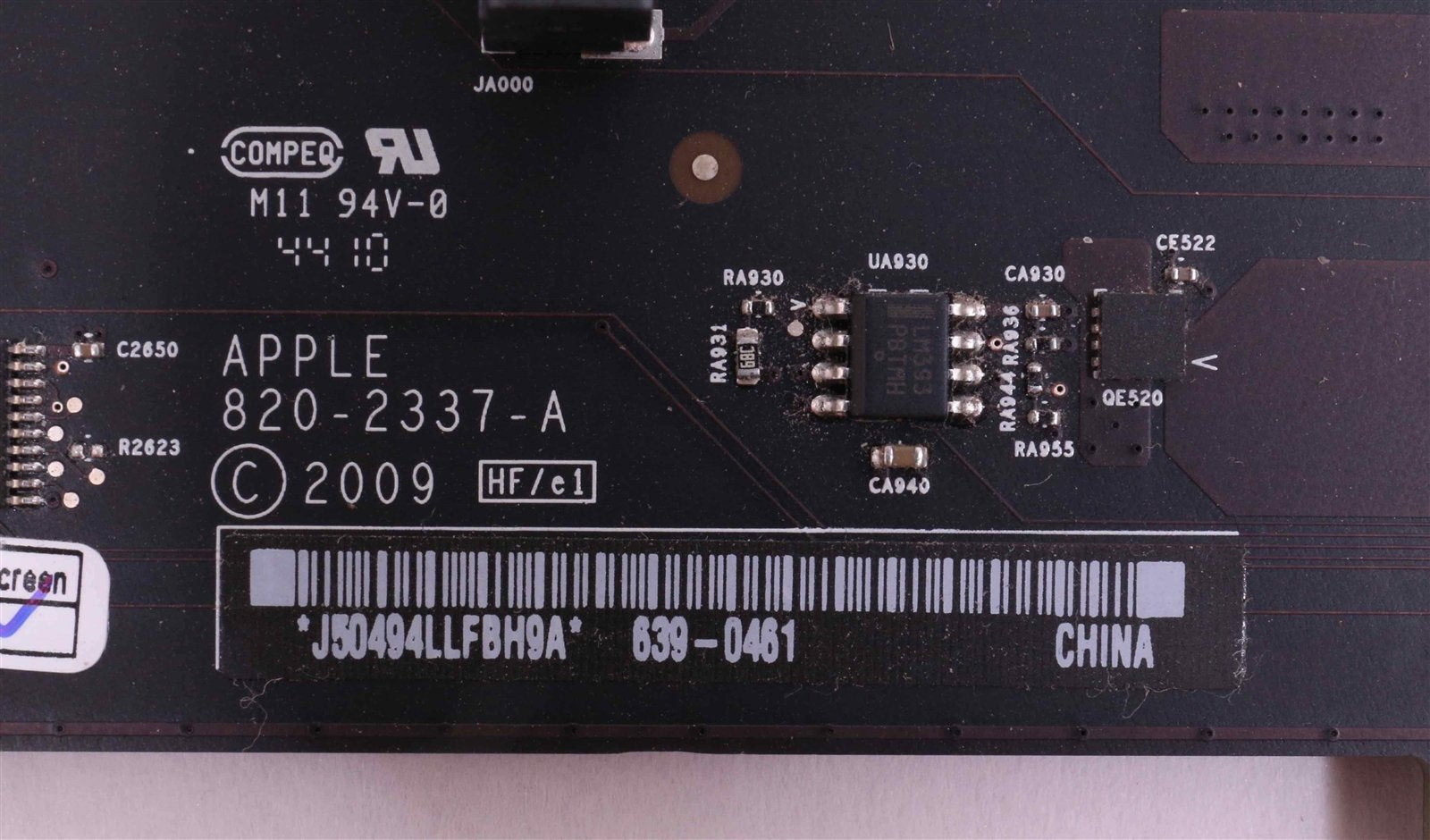

Part Numbers 639-0461 631-1427 661-5706
Original 5,1 Board (NOT a flashed 4,1)
Used with a video card supporting metal this logic board can be used with OSX Mojave.
Support for NVME Solid State drives with add in PCIE adapter and software update to Mojave.
Supported CPU's Intel Xeon Westmere and Nehalem

Mac Pro Towers from Mid 2010 to 2012

Identifiers

Mac Pro 5,1 A1289 - 2314

Mac Pro 5,1 A1289 - 2314 (Server)

Mac Pro 5,1 A1289 - 2629

Mac Pro 5,1 A1289 - 2629 (Server)

Model Numbers

MC250LL/A

MC516LL/A

MC915LL/A

MD770LL/A

MD771LL/A

MD772LL/A

Graphics Support

Double-wide, 16-lane PCI Express 2.0 graphics slot with one of the following graphics cards installed:
- ATI Radeon HD 5770 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port
- ATI Radeon HD 5870 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port
Supported under Mojave:

AMD Radeon RX 560, 570 580
AMD Radeon Pro WX 7100
AMD Radeon RX Vega 56
AMD Radeon RX Vega 64
AMD Radeon Pro WX 9100
AMD Radeon Frontier Edition

Communications

Built-in AirPort Extreme 802.11n Wi-Fi wireless networking;³ IEEE 802.11a/b/g compatible
Bluetooth 2.1 + Enhanced Data Rate (EDR) wireless technology
Two independent 10/100/1000BASE-T Ethernet (RJ-45) interfaces with support for jumbo frames

Connections and Audio

Four FireWire 800 ports (two on front panel, two on back panel)
Five USB 2.0 ports (two on front panel, three on back panel)
Two USB 2.0 ports on included keyboard
Front-panel headphone minijack and internal speaker
Optical digital audio input and output TOSLINK ports
Analog stereo line-level input and output minijacks
Multichannel audio through Mini DisplayPort

PCI Express expansion

Three open full-length PCI Express expansion slots⁶
- One PCI Express 2.0 x16 slot
- Two PCI Express 2.0 x4 slots
All slots provide mechanical support for 16-lane cards
300W combined maximum for all PCI Express slots

Connections and Audio

Four FireWire 800 ports (two on front panel, two on back panel)
Five USB 2.0 ports (two on front panel, three on back panel)
Two USB 2.0 ports on included keyboard
Front-panel headphone minijack and internal speaker
Optical digital audio input and output TOSLINK ports
Analog stereo line-level input and output minijacks
Multichannel audio through Mini DisplayPort

Memory

Dual-processor systems
- 2.4GHz, 2.66GHz, and 3.06GHz systems: 1333MHz DDR3 ECC SDRAM
- Eight memory slots (four per processor) supporting up to 64GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs
Single-processor systems
- 3.2GHz system: 1066MHz DDR3 ECC SDRAM
- 3.33GHz system: 1333MHz DDR3 ECC SDRAM
- Four memory slots supporting up to 32GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs
