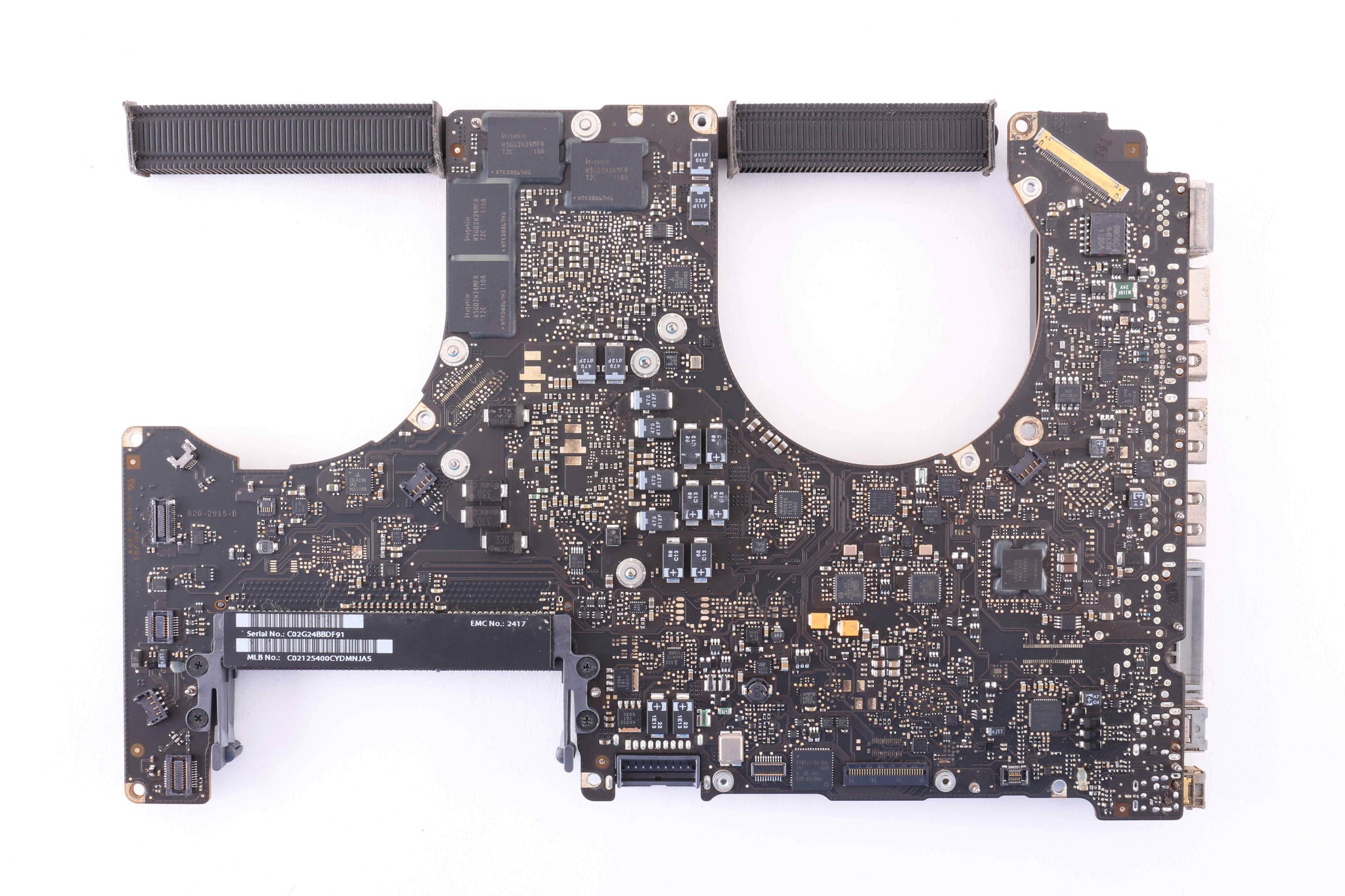

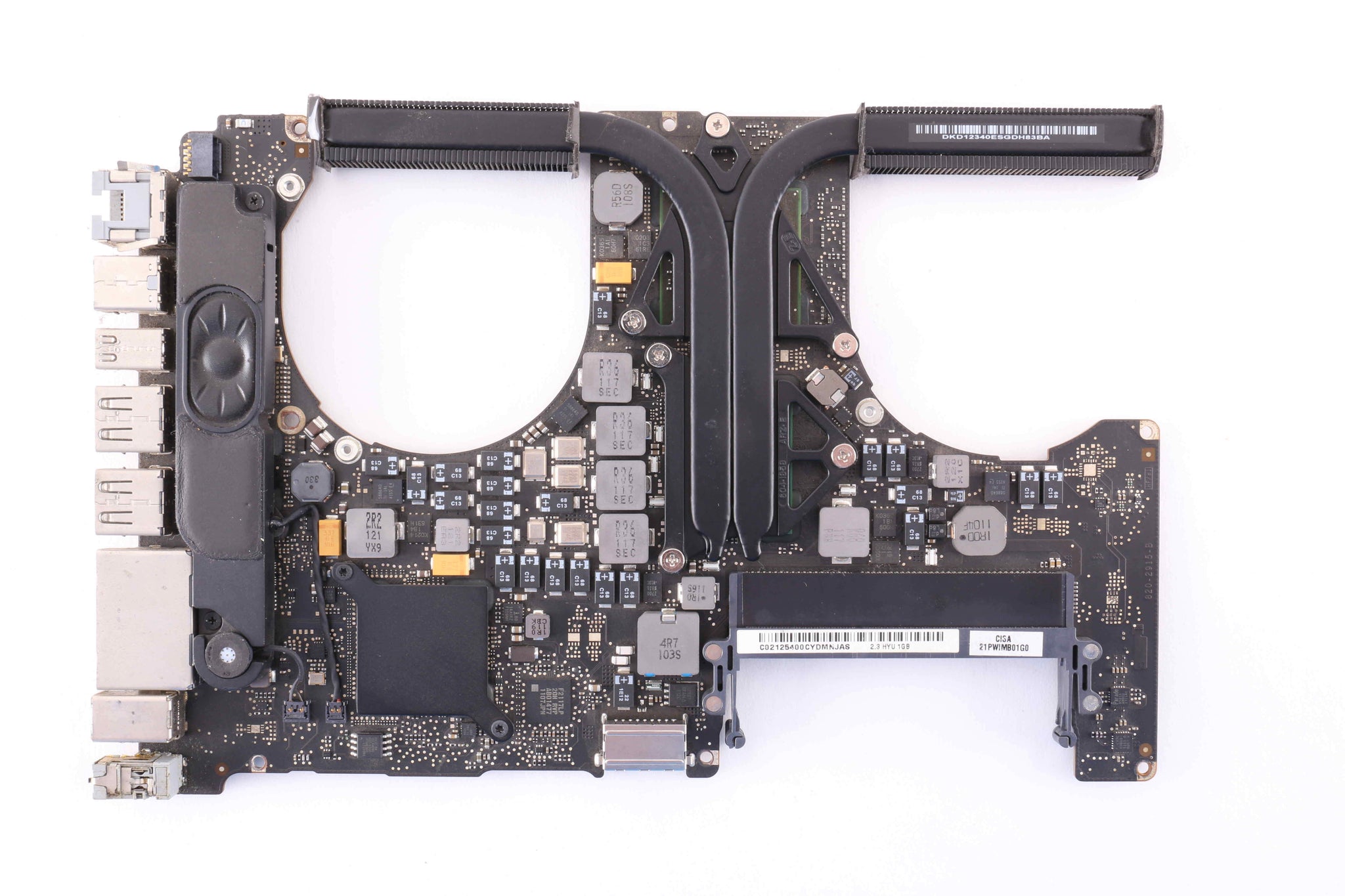

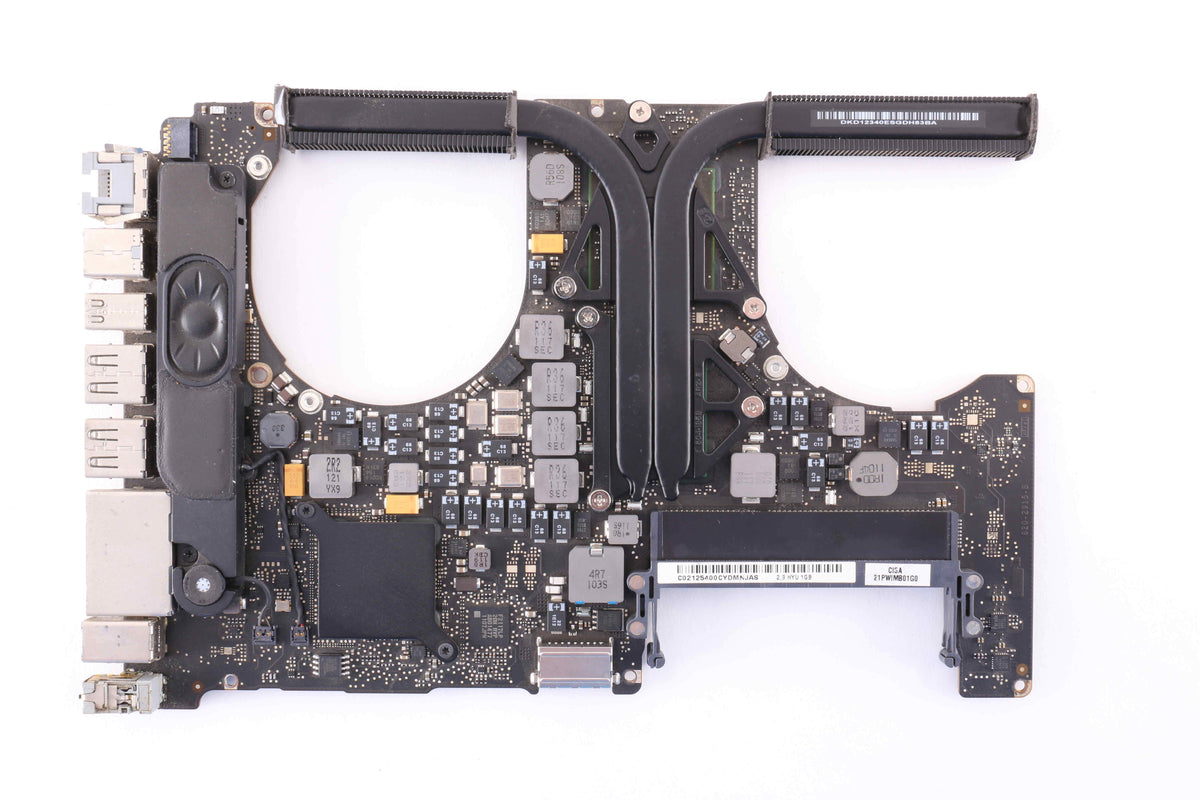

15" MacBook Pro A1286 MD035LL/A Early 2011 Logic Board 2.3 Ghz I7 GPU AMD 6750

Sold Out

Notify me when this product is available:

  • Condition: Used
    Condition Details: Fully Tested and Backed By Our 30 Day Warranty

    Genuine Apple Logic Board

    Features

    • 2.3 GHz Intel Core I7-2820QM Quad Core Processor (Sandy Bridge)
    • AMD Radeon HD 6750M with 1 GB of dedicated GDDR5 memory
    • Intel HD 3000 graphics shared 384 MB of memory
    • HeatSink Included
    Compatibility

    15" Apple MacBook Pro Mid 2010

    Identifiers

    MacBook Pro 6,2 A1286 - 2353

    Model Numbers

    MD035LL/A

    MC723LL/A

    Specs

    Graphics and video support

    • AMD Radeon HD 6750M graphics processor with 1GB of GDDR5 memory
    • Intel HD Graphics 3000 with 384MB of DDR3 SDRAM shared memory
    • Automatic graphics switching
    • Dual display and video mirroring: Simultaneously supports full native resolution on the built-in display and up to 2560 by 1600 pixels on an external display, both at millions of colors
    • FaceTime HD camera
    • Thunderbolt port

      Communications

      • AirPort Extreme Wi-Fi wireless networking (based on IEEE 802.11n specification); IEEE 802.11a/b/g compatible
      • Bluetooth 2.1 + EDR (Enhanced Data Rate) wireless technology
      • 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

      Display

      • Supported resolutions: 1440 by 900 (native), 1280 by 800, 1152 by 720, 1024 by 640, and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched
      • Optional 15.4-inch (diagonal) LED-backlit widescreen display with 1680 by 1050 pixels (glossy or antiglare)

      Thunderbolt digital video output

      • Native Mini DisplayPort output
      • DVI output using Mini DisplayPort to DVI Adapter (optional)
      • VGA output using Mini DisplayPort to VGA Adapter (optional)
      • Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter supports 30-inch Apple Cinema HD Display (optional)
      • HDMI audio and video output using a third-party Mini DisplayPort to HDMI Adapter

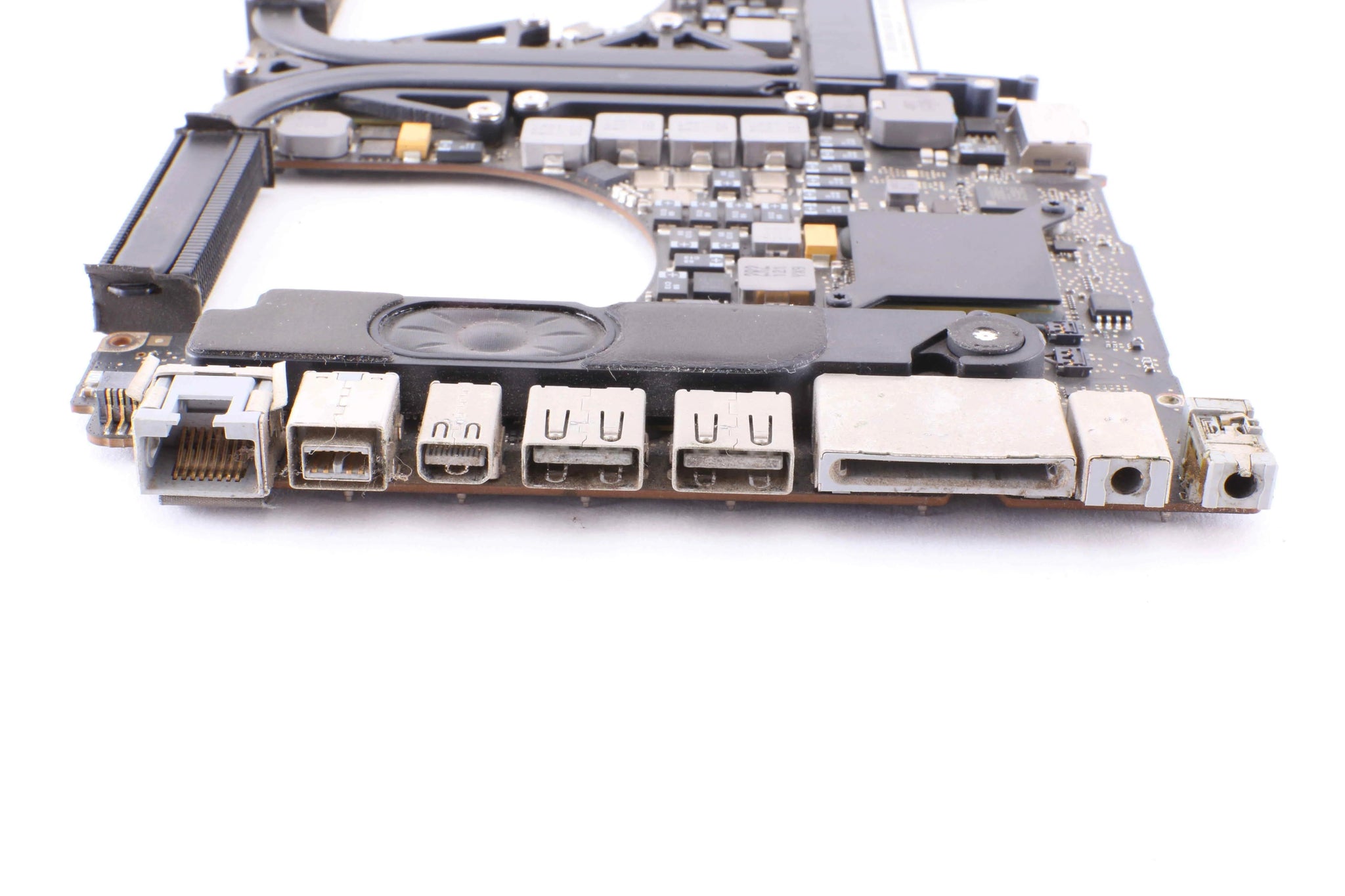

      Connections and expansion

      • MagSafe power port
      • Gigabit Ethernet port
      • FireWire 800 port (up to 800 Mbps)
      • Two USB 2.0 ports (up to 480 Mbps)
      • Thunderbolt port (up to 10 Gbps)
      • Audio line in
      • Audio line out
      • SDXC card slot
      • Kensington lock slot

      Audio

      • Stereo speakers with subwoofers
      • Omnidirectional microphone (located under left speaker grille)
      • Audio line in minijack (digital/analog)
      • Audio line out/headphone minijack (digital/analog)
      • Support for Apple iPhone headset with microphone

    • Brand:  Apple
      GPU Manufacture: [[Chipset Manufacturer]]
      GPU Model: [[Chipset/GPU Model]]
      Memory Type:  DDR3 SDRAM
      Memory Size:  [[Memory Size]]

      Connectors:  [[Connectors]]
      Compatible Slot:  [[Compatible Slot]]
      Power Cable:  [[Power Cable requirement]]
      API's:  [[APIs]]
      Cooling type:  [[Cooling Component included]]
      Features:  [[Features]]
    • [[Compatibility]]
      [[model family]]
      [[Model]]

    Returns

    • We accept returns for any reason within thirty days of purchase: we simply ask you cover the return shipping costs.
    • If a part is defective on arrival or fails within thirty days, we will offer a replacement or refund and a pre-paid return shipping label.



    Part Condition

    • The majority of our parts come from used machines and are in good working condition.
    • The part may have signs of cosmetic wear, but will be fully operational.
    • We use photos to show the overall cosmetic condition of an item. They will accurately reflect the part you will receive, but may not be the exact item.

    Our Goal

    • Happy customers and fixed computers.
    • To achieve this, we will work diligently with you to diagnose issues and find solutions.
    • Finding the problem can sometimes be tricky and frustrating. Often times, the part that seemed to be failing might not even be the issue.
    • We are here to help get that sorted out.
