iMac 21.5" A1418 Late 2012 Logic Board with Nvida GeForce GT640M **No CPU**

Notify me when this product is available:

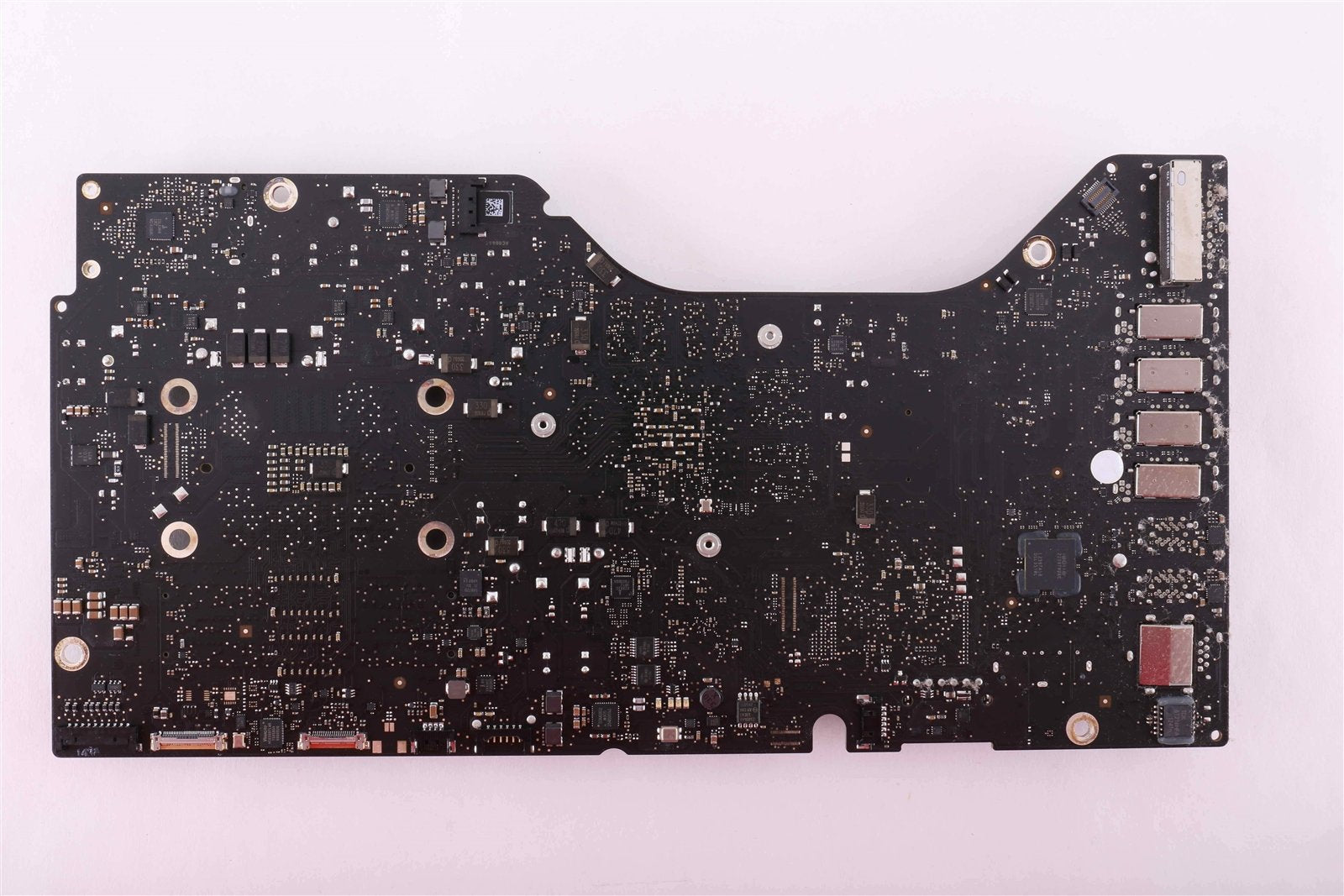

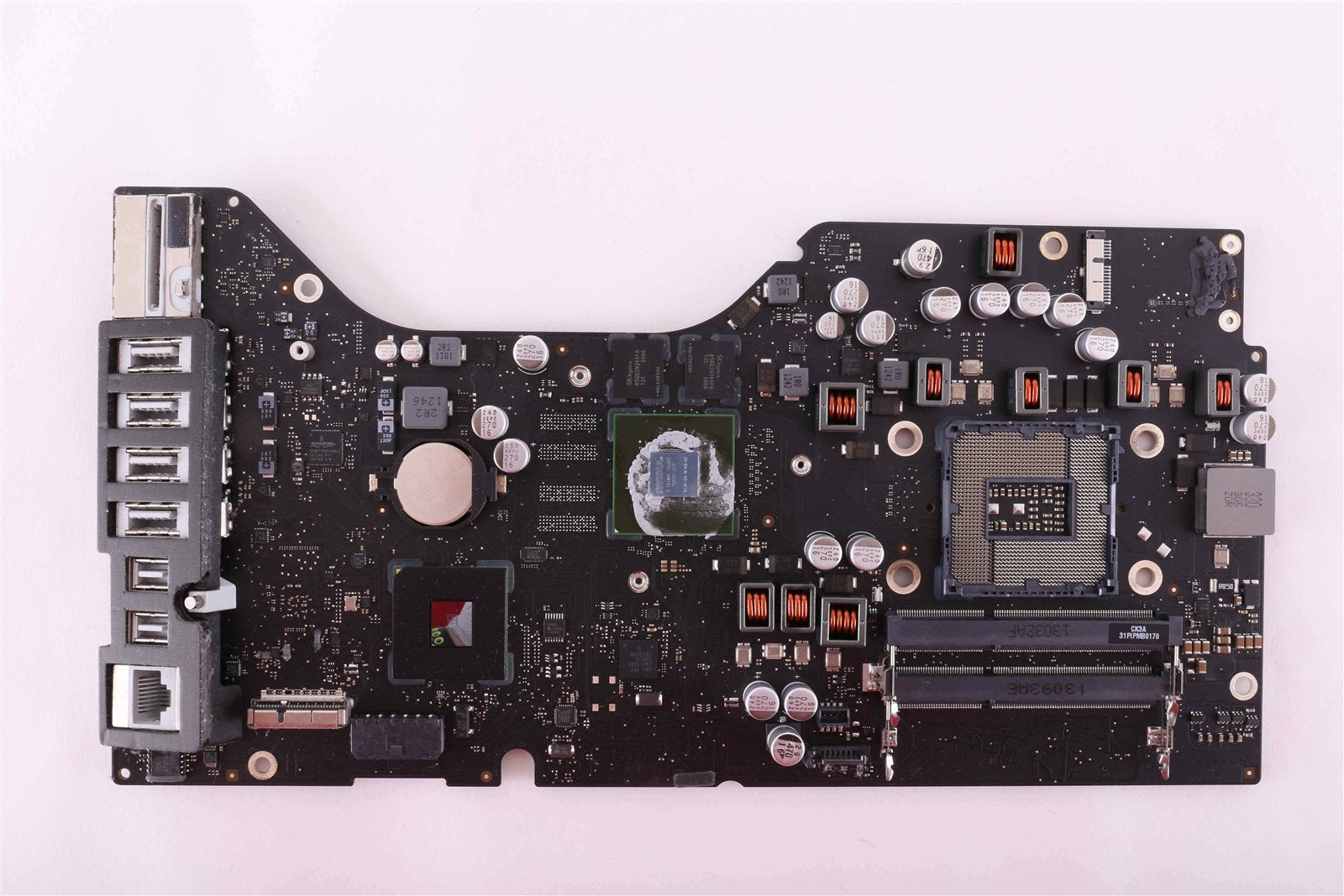

  • Genuine Apple Logic Board for the iMac 21.5" A1418 Late 2012

    All Late 2012 logic boards are interchangeable the only difference being the type of video card integrated to the board.

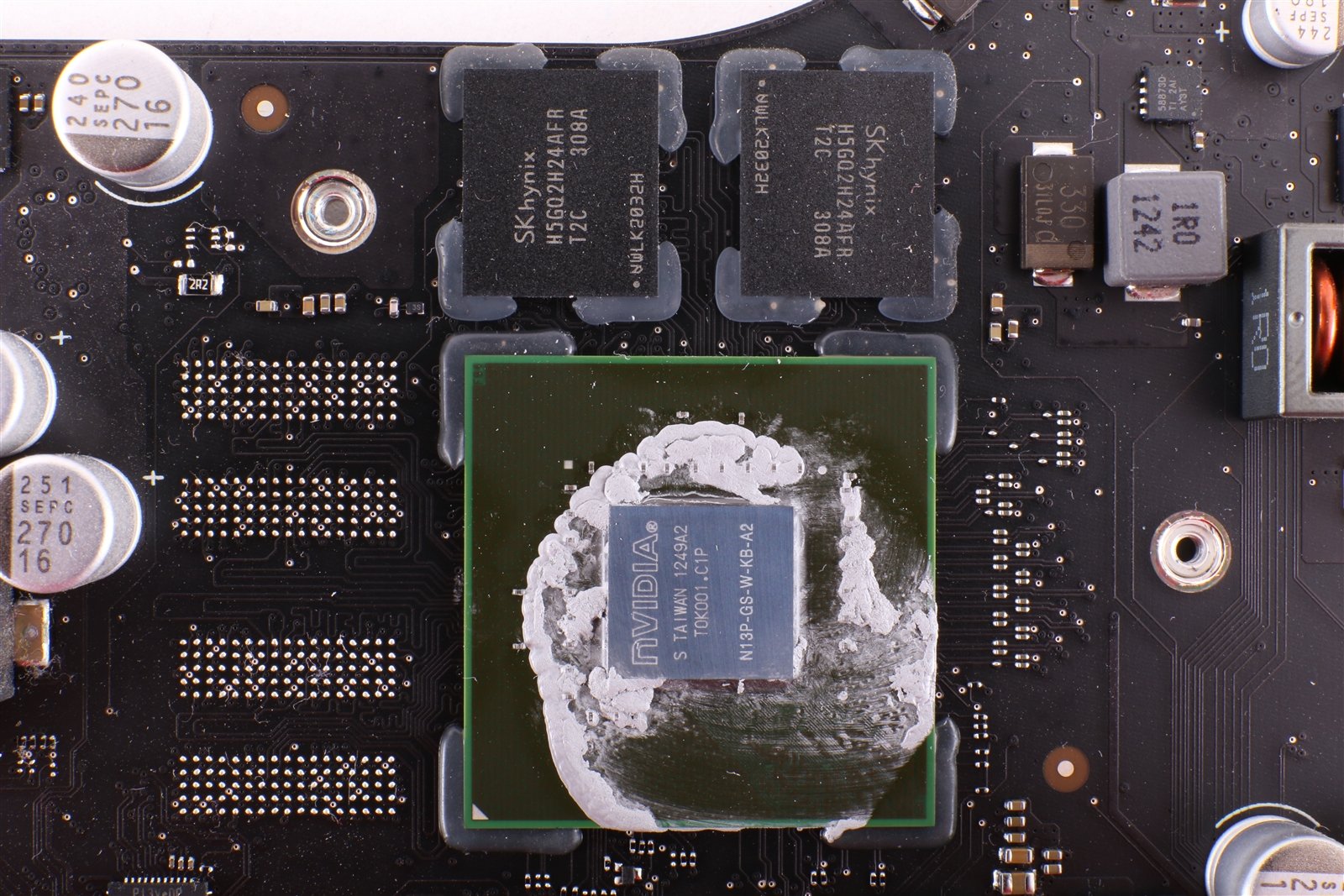

    This logic Board has the Nvida GeForce GT640M with 512 MB's of Memory

    Supported Ivy Bridge CPU's (Not Included)

    i5-3330S

    I5-3470S

    I7-3770S

    Compatibility

    21.5 inch Apple iMac (Thin) Late 2012

    Identifiers

    iMac 13,1 A1418 - 2544

    Model Numbers

    MD093LL/A

    MD094LL/A

    Specs

    Display

    • 21.5-inch (diagonal) LED-backlit display with IPS technology
    • 1920-by-1080 resolution with support for millions of colors

    Processor

    • 2.7GHz quad-core Intel Core i5 processor (Turbo Boost up to 3.2GHz) with 6MB L3 cache
    • 2.9GHz quad-core Intel Core i5 processor (Turbo Boost up to 3.6GHz) with 6MB L3 cache
    • 3.1GHz quad-core Intel Core i7 processor (Turbo Boost up to 3.9GHz)

    Memory

    • Two Available SDRAM Slots
    • 1600MHz DDR3 memory
    • Total Supported ram 16 GB

    Graphics

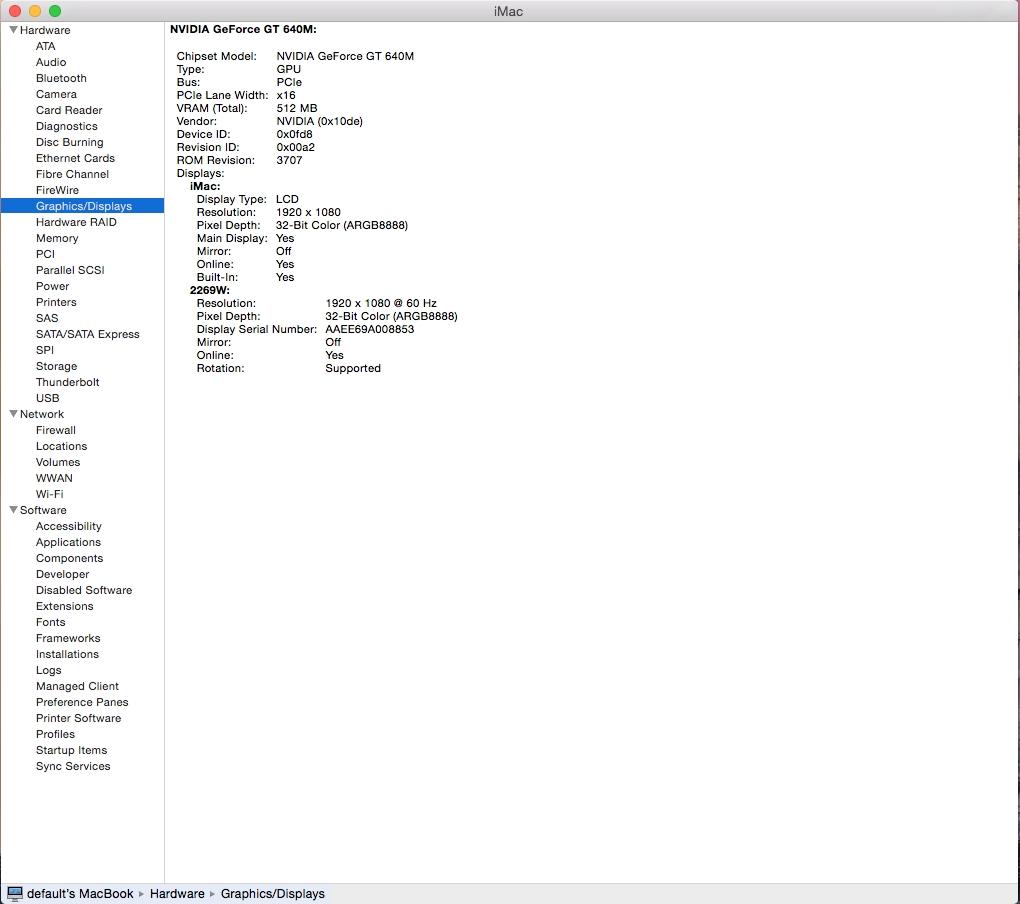

    • NVIDIA GeForce GT 640M graphics processor with 512MB of GDDR5 memory

    Video Support and Camera

    • Simultaneously supports full native resolution on the built-in display and up to a 30-inch display (2560 by 1600 pixels) on an external display
    • Support for extended desktop and video mirroring modes

    Audio

    • Stereo speakers
    • Dual microphones
    • Headphone port

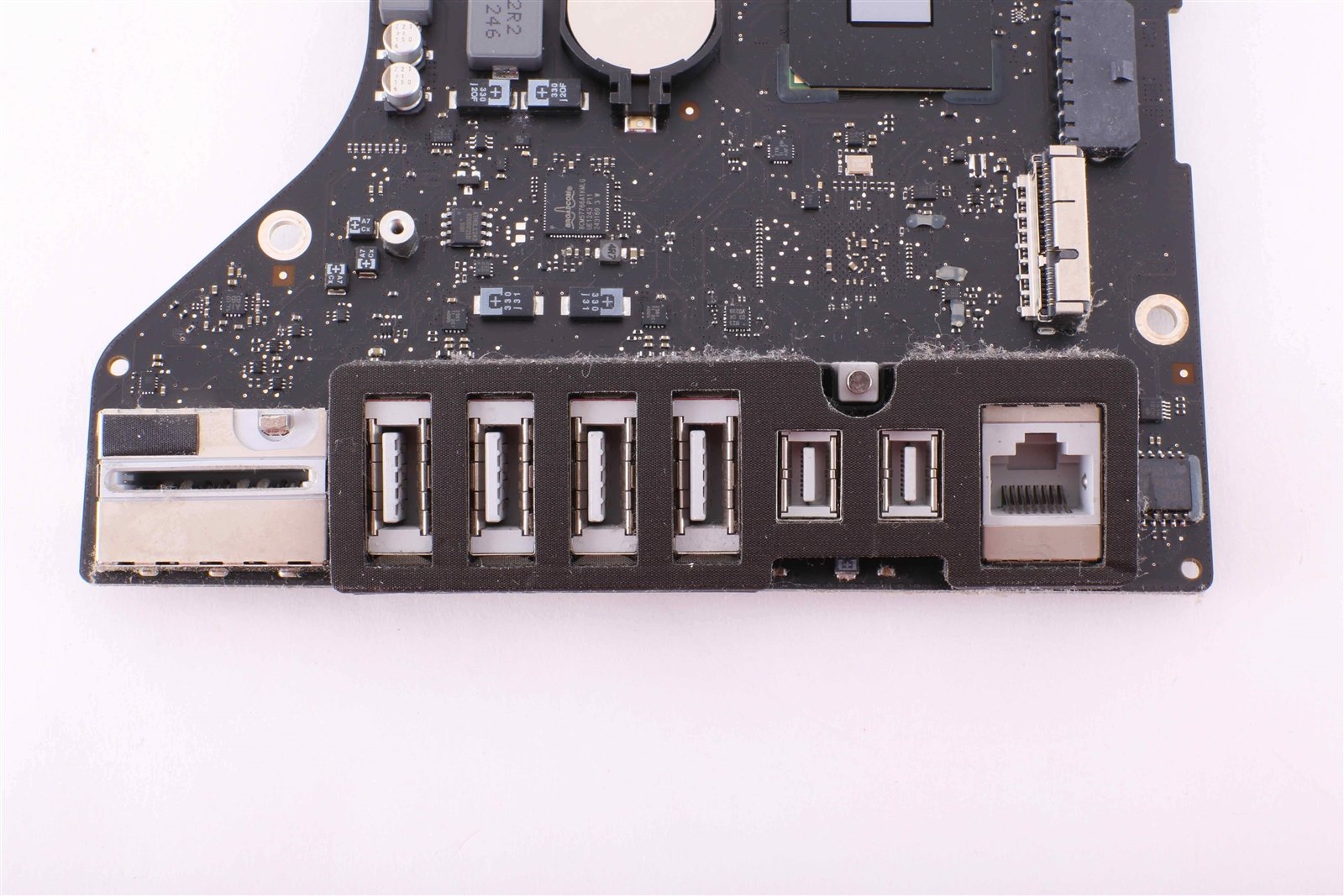

    Connections and Expansion

    • SDXC card slot
    • Four USB 3 ports
    • Two Thunderbolt ports
    • Mini DisplayPort output with support for DVI, VGA, and dual-link DVI (adapters sold separately)
    • 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

      Fully Tested To be Working and backed by our 30 Day Warranty.
      Used

    • Brand:  Apple
      Form Factor: iMac
      Compatible CPU Brand: Intel
      CPU Clock Speed: [[CPU Clock Speed]]
      CPU L2 Cache:  [[CPU L2 Cache]]
      CPU L3 Cache:  [[CPU L3 Cache]]
      Most Suitable For:  [[Most Suitable For]]
      CPU Bus Speed: [[CPU Bus Speed]]
      Number of CPU Cores: [[Number of CPU Cores]]
      CPU Bus Speed:  [[CPU Bus Speed]]

      Number of Memory Slots:  2
      Input/Output Ports:  [[Input/Output Ports]]
      Features:  Nvidia GeForce GT 640M 512MB,Removable / Upgradeable Ram,Socketed CPU
      Model:
      CPU Series:  [[CPU Series]]
      Socket Type:  LGA 1155/Socket H2
      Memory Type:  DDR4 SDRAM
      MPN:
      Custom Bundle:
      Expansion Slots:  [[Expansion Slots]]
    • MD093LL/A, MD094LL/A
      A1418
