iMac 27" A1419 Late 2015 Logic Board W/ 4GB AMD Radeon R9 M395 GPU *NO CPU*

Sold Out

Notify me when this product is available:

  • Condition: Used

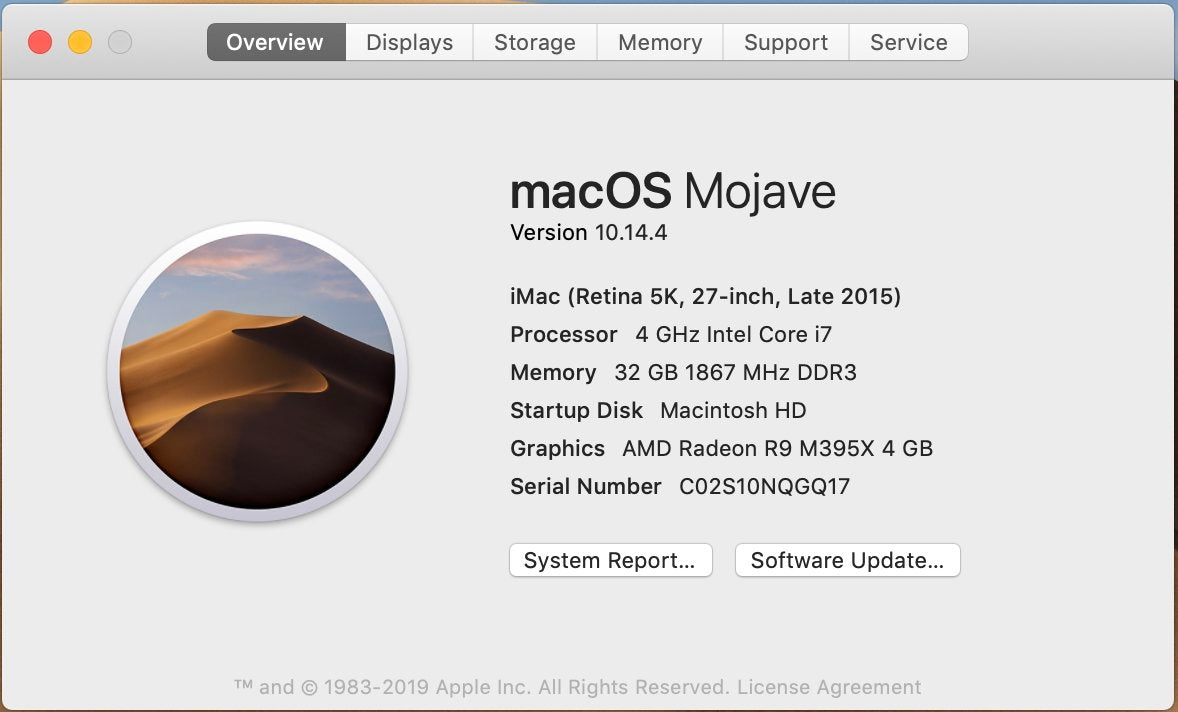

    Condition Details: Fully Tested To be Working and backed by our 30 Day Warranty.

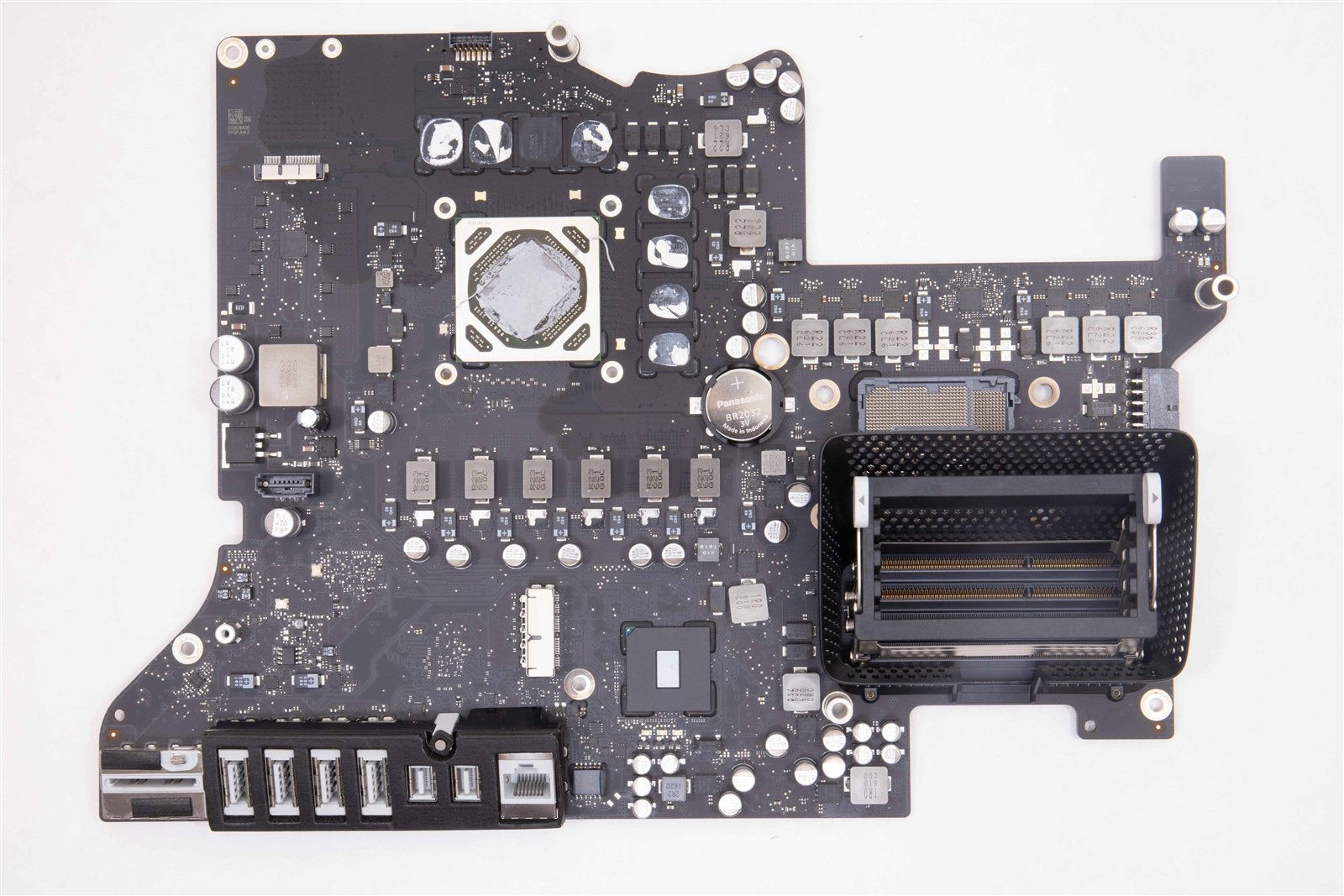

    • Genuine Apple Logic Board featuring the AMD Radeon R9 M395 graphics processor with 4 GB of memory.

      This logic board was used in the High End configuration of the Late 2015 27" 5K iMac.  It may be used as replacement for other Late 2015 models where a step up in GPU performance is Desired.

      No CPU is included with this Logic Board it may be used with any of the following SkyLake 6th Generation Intel Core Series Processors.

      3.2 GHz I5-6500

      3.3 GHz I5-6600

      4.0 GHz I7-6700K

      Compatibility

      27 inch Apple iMac Retina 5K Late 2015

      Identifiers

      iMac 17,1 A1419 - 2834

      Model Numbers

      MK462LL/A

      MK482LL/A

      Specs

      Processor

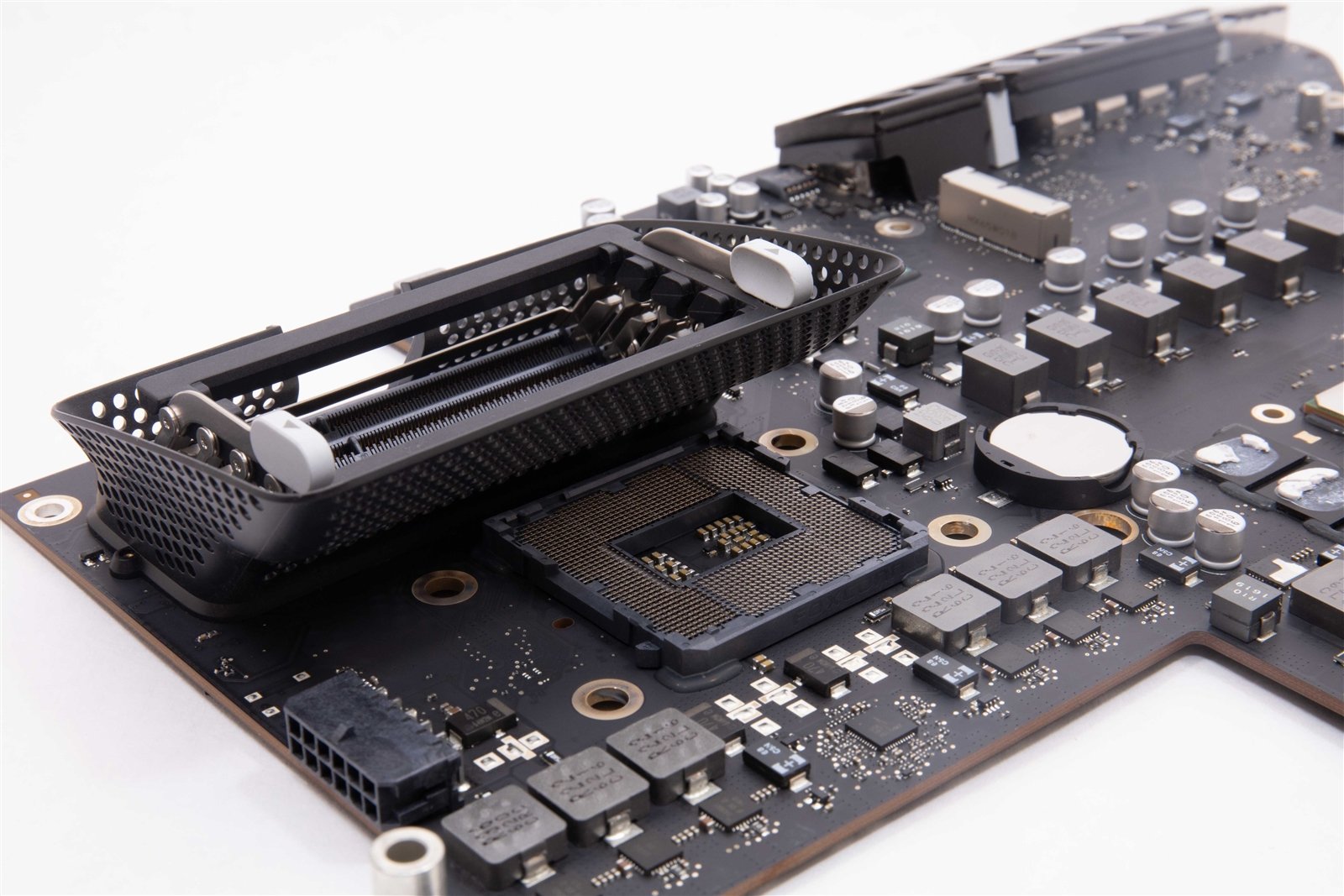

      Socket FCLGA1151

      • 3.2GHz quad‑core Intel Core i5 (Turbo Boost up to 3.6GHz)
      • 3.3GHz quad‑core Intel Core i5 (Turbo Boost up to 3.9GHz)
      • 4.0GHz quad-core Intel Core i7 (Turbo Boost up to 4.2GHz)

        Memory

        • 1867MHz DDR3 memory; four user-accessible SO-DIMM slots
          MAximum Supported ram 64GB.

        Graphics

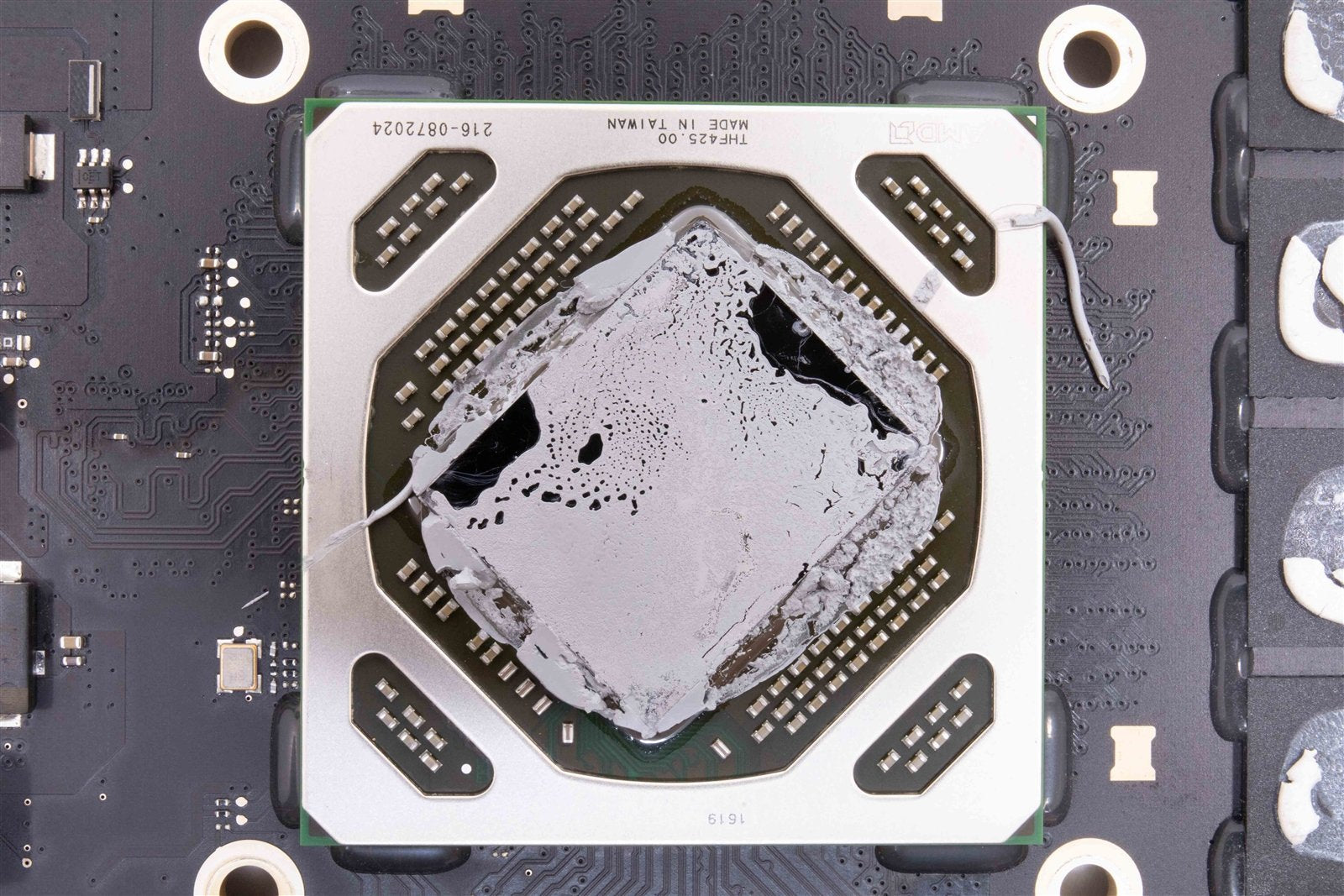

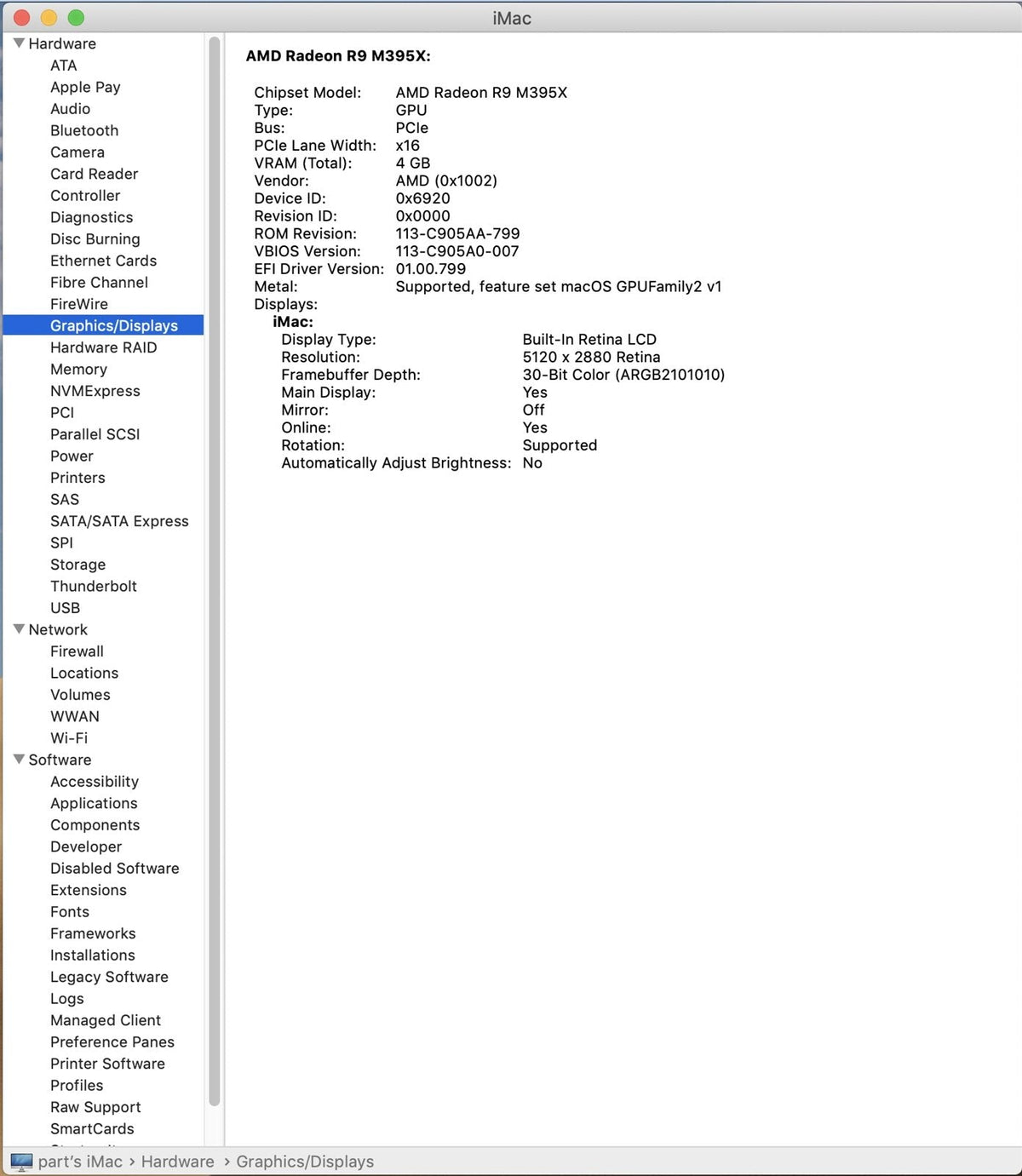

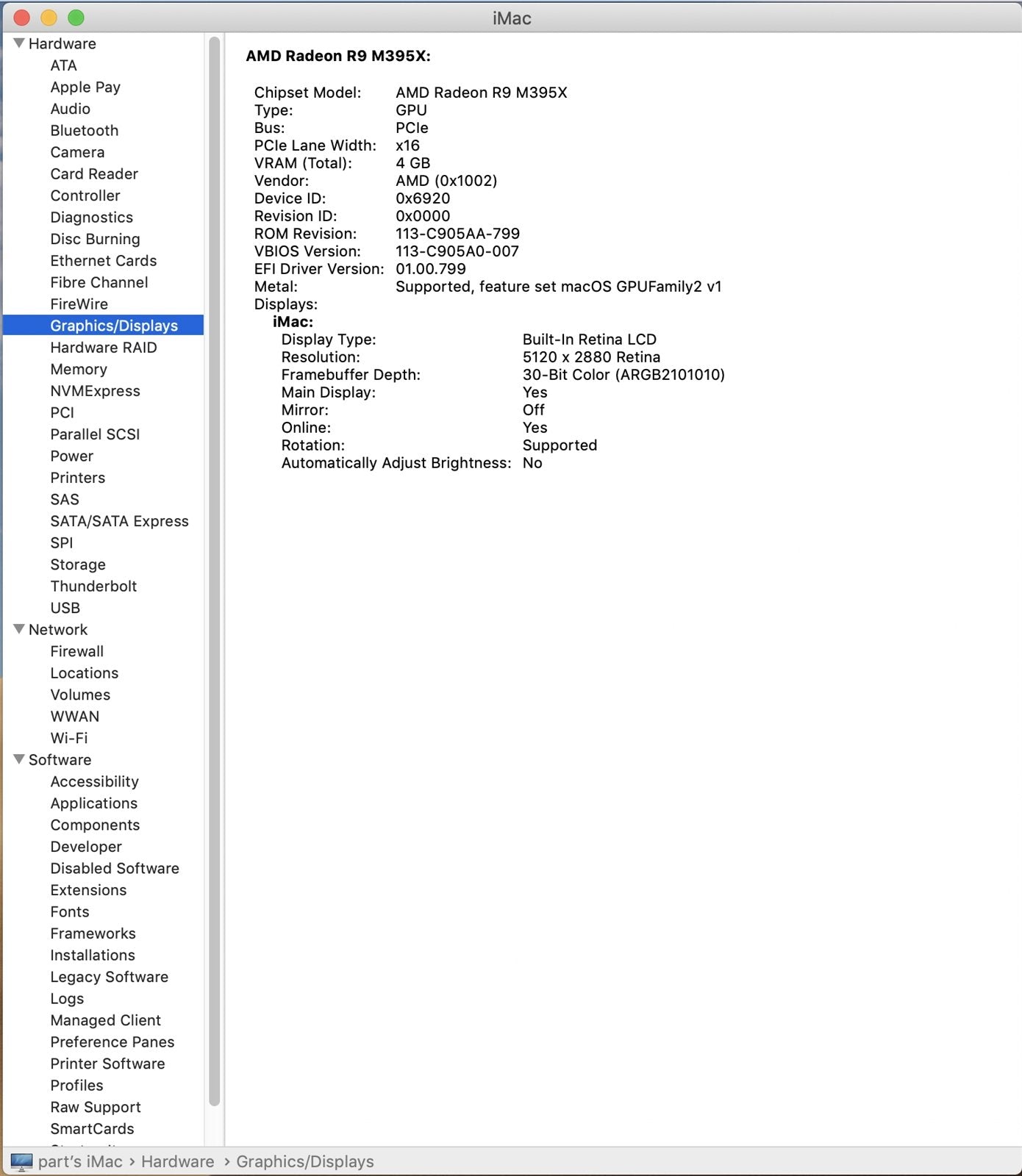

        • AMD Radeon R9 M395 graphics processor with 4GB of GDDR5 memory.

        Video Support and Camera

        • Simultaneously supports full native resolution on the built-in display and up to two 4096-by-2160 external displays or one 5120-by-2880 dual-cable external display
        • Support for extended desktop and video mirroring modes

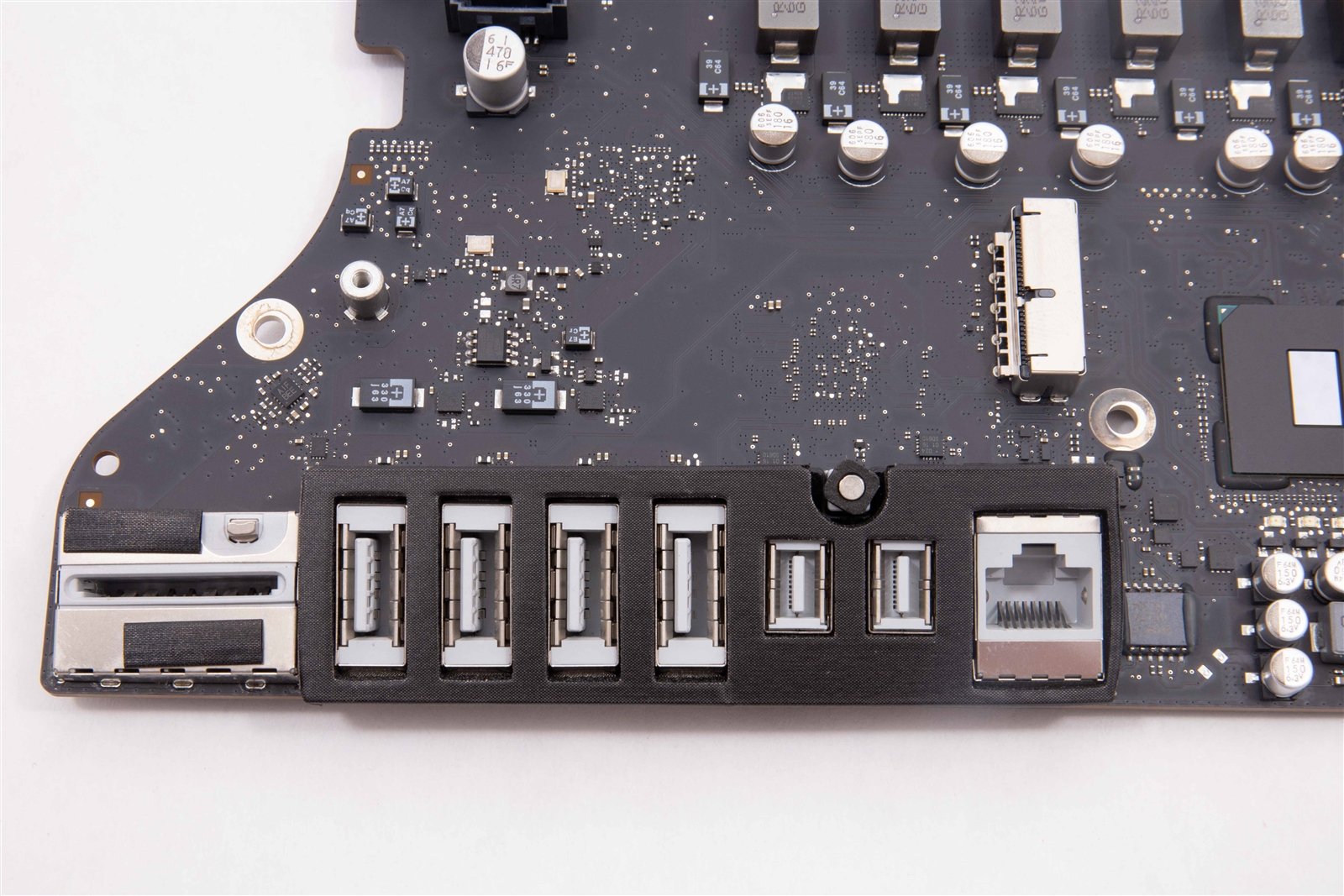

        Connections and Expansion

        • SDXC card slot
        • Four USB 3 ports (compatible with USB 2)
        • Two Thunderbolt 2 ports up to 20 Gb/s
        • 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)
        Fully Tested To be Working and backed by our 30 Day Warranty. Used

      • Brand:  Apple
        Form Factor: iMac
        Compatible CPU Brand: Intel
        Most Suitable For:  Graphic Design

        Socket Type:  LGA 1151
        Memory Type:  LPDDR3
        Expansion Slots:  PCIe Slot for Apple SSD
        Number of Memory Slots:  4
        Input/Output Ports:  SATA III,Thunderbolt,USB 3.0
        Features:  AMD Radeon R9 M395X 4 GB,SDXC card slot

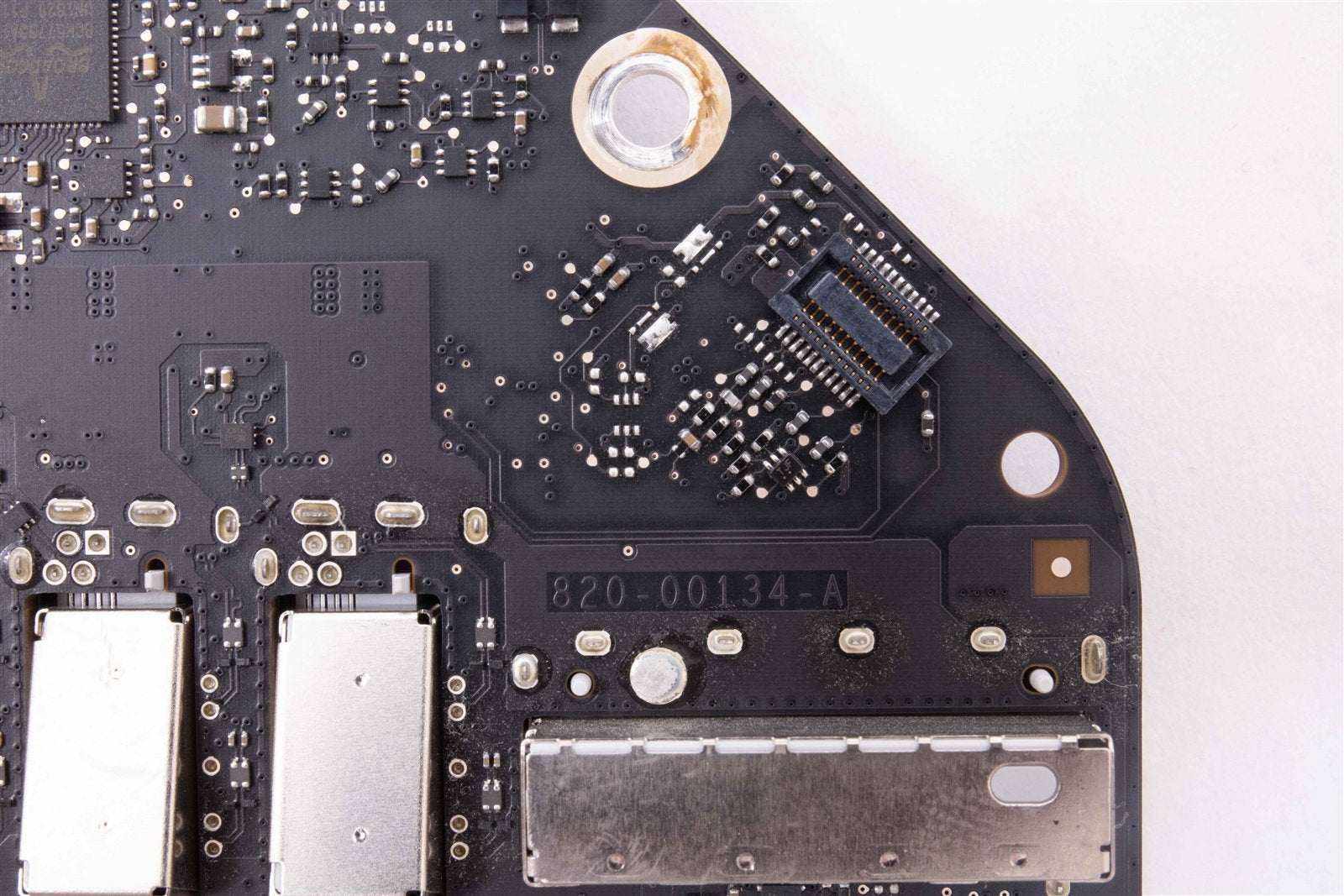

        MPN:  820-00134
      • MK482LL/A
        A1419
        Late 2015 5k iMac

    • Brand:  Apple
      GPU Manufacture: [[Chipset Manufacturer]]
      GPU Model: [[Chipset/GPU Model]]
      Memory Type:  LPDDR3
      Memory Size:  [[Memory Size]]

      Connectors:  [[Connectors]]
      Compatible Slot:  [[Compatible Slot]]
      Power Cable:  [[Power Cable requirement]]
      API's:  [[APIs]]
      Cooling type:  [[Cooling Component included]]
      Features:  AMD Radeon R9 M395X 4 GB,SDXC card slot
    • [[Compatibility]]
      [[model family]]
      Late 2015 5k iMac

    Returns

    • We accept returns for any reason within thirty days of purchase: we simply ask you cover the return shipping costs.
    • If a part is defective on arrival or fails within thirty days, we will offer a replacement or refund and a pre-paid return shipping label.



    Part Condition

    • The majority of our parts come from used machines and are in good working condition.
    • The part may have signs of cosmetic wear, but will be fully operational.
    • We use photos to show the overall cosmetic condition of an item. They will accurately reflect the part you will receive, but may not be the exact item.

    Our Goal

    • Happy customers and fixed computers.
    • To achieve this, we will work diligently with you to diagnose issues and find solutions.
    • Finding the problem can sometimes be tricky and frustrating. Often times, the part that seemed to be failing might not even be the issue.
    • We are here to help get that sorted out.
